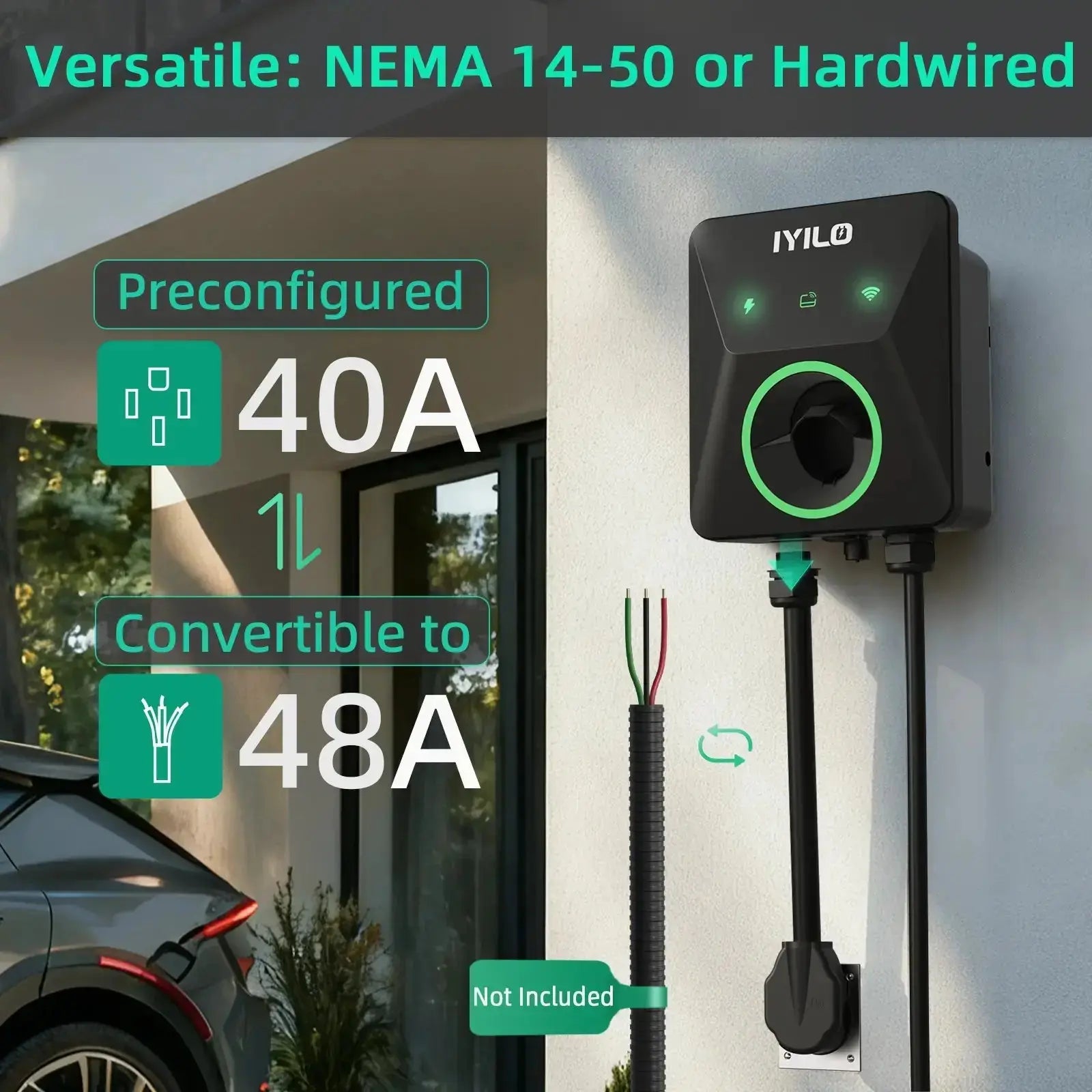

The IYILO Level 2 EV Charger (48A) is a smart home charging station with flexible installation: plug it into a NEMA 14-50 outlet at up to 40A, or hardwire it to unlock the full 48A / 11.5 kW on 240V power.
Key specs

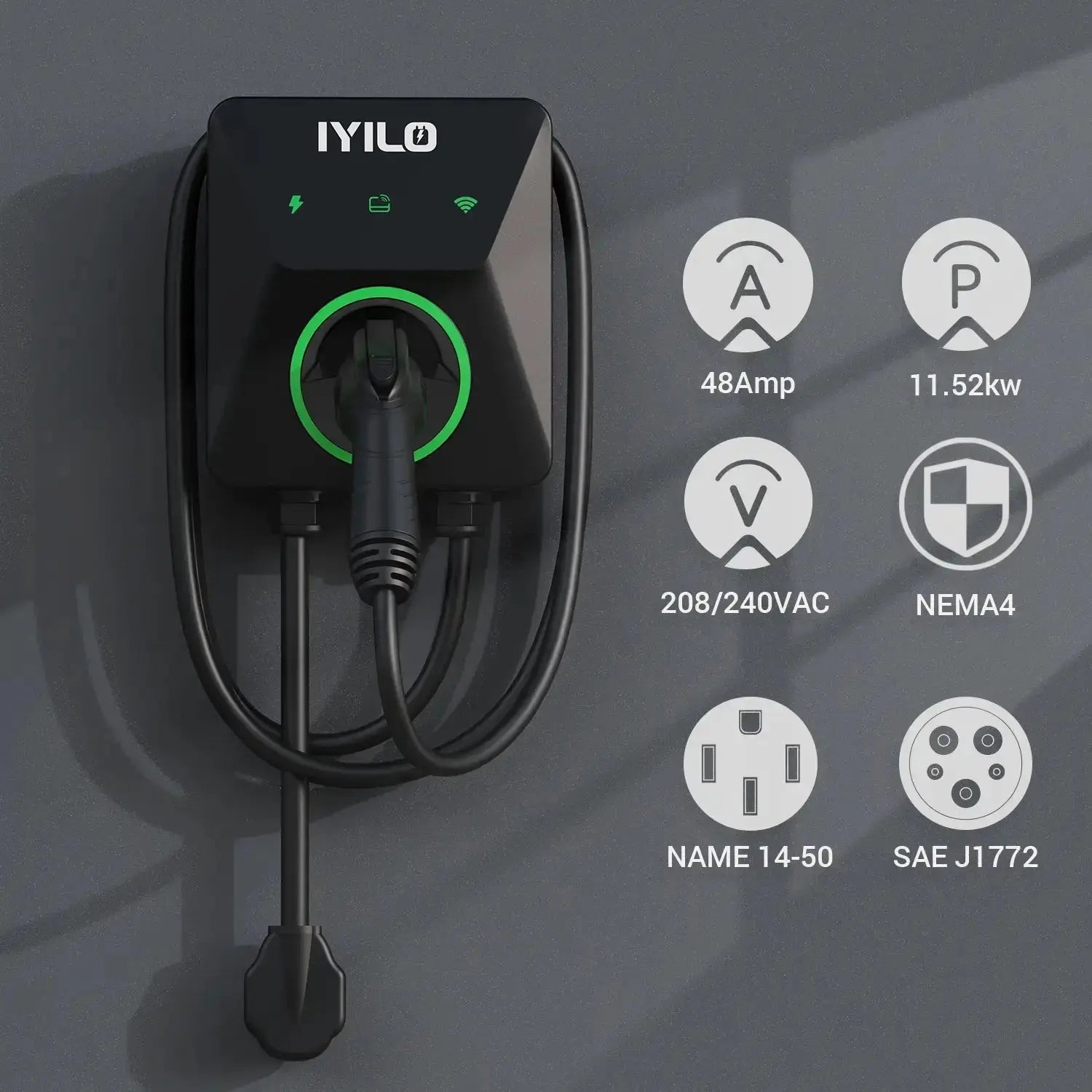

Power: Up to 48A / 11.5 kW hardwired (up to 40A / 9.6 kW plug-in), 208/240V AC. Current adjustable from 6A to 48A.

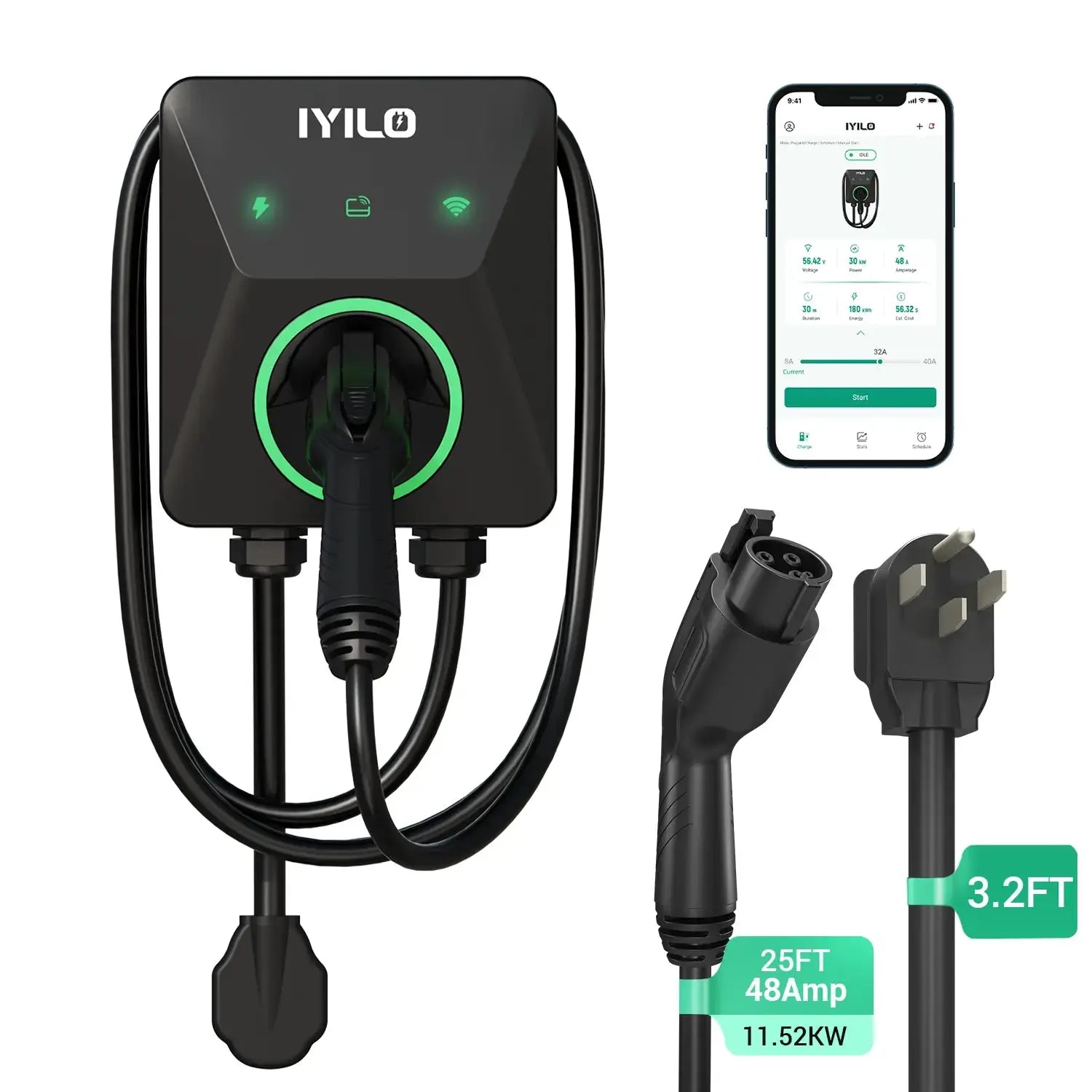

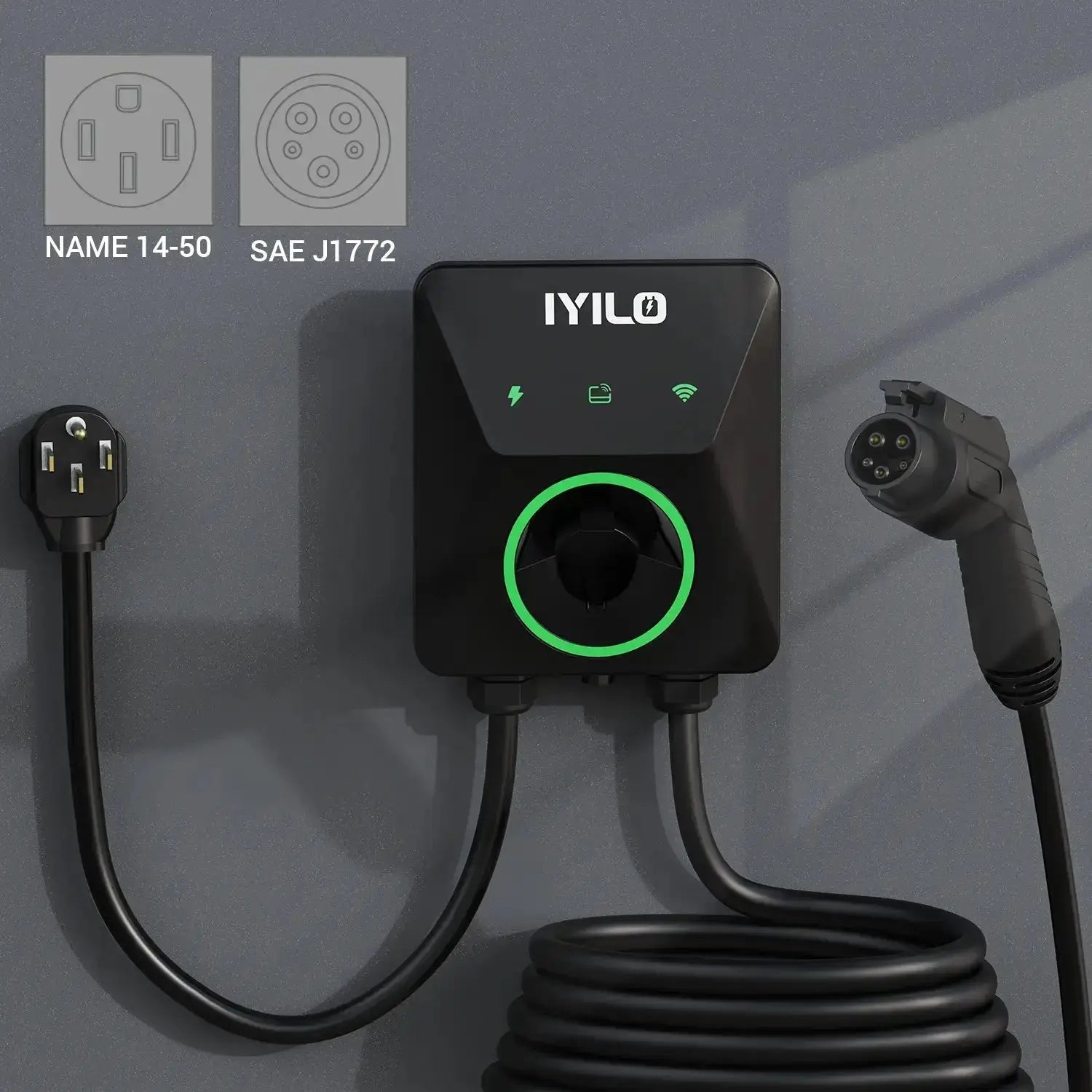

Connection: NEMA 14-50 plug-in or hardwired. 25 ft charging cable with SAE J1772 connector.

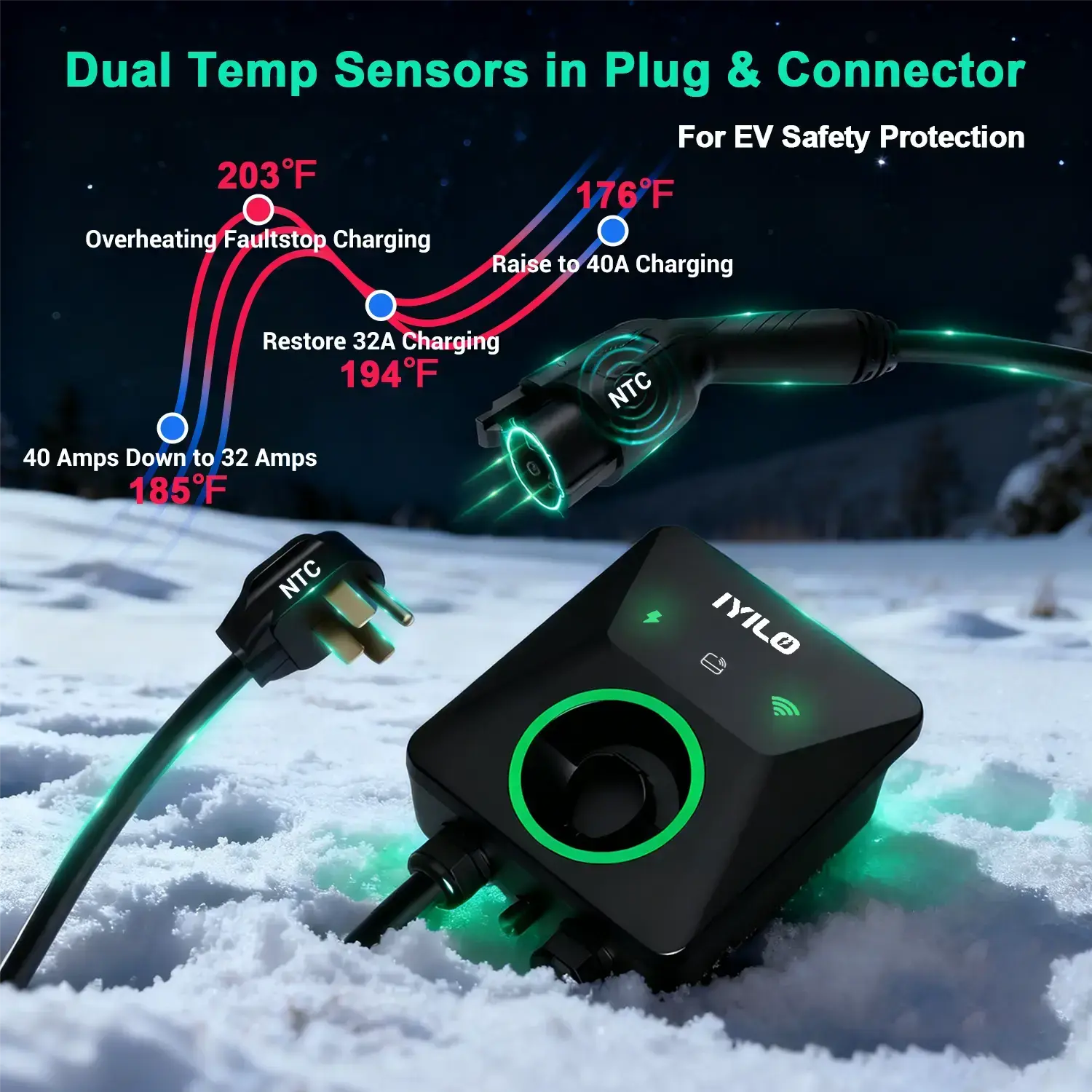

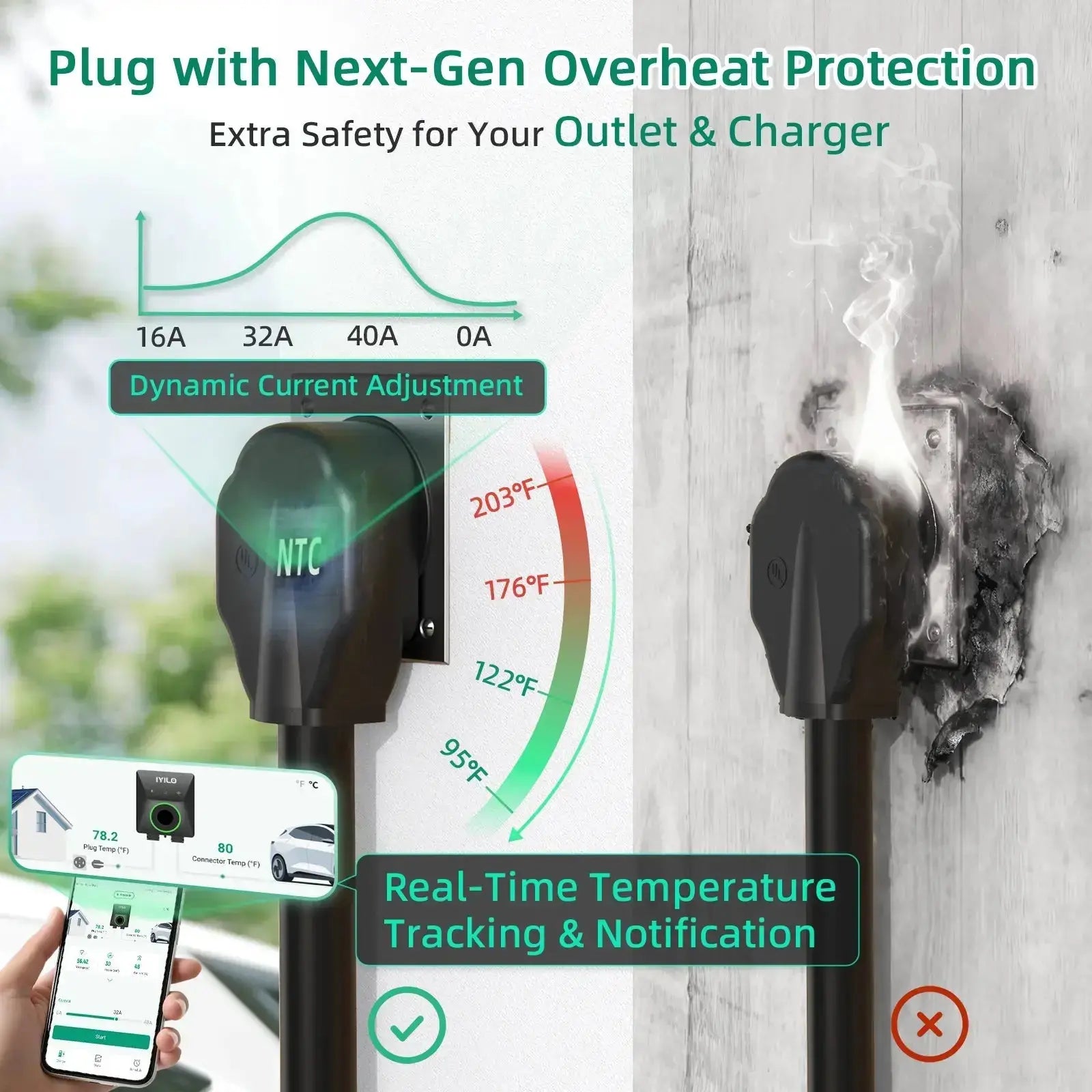

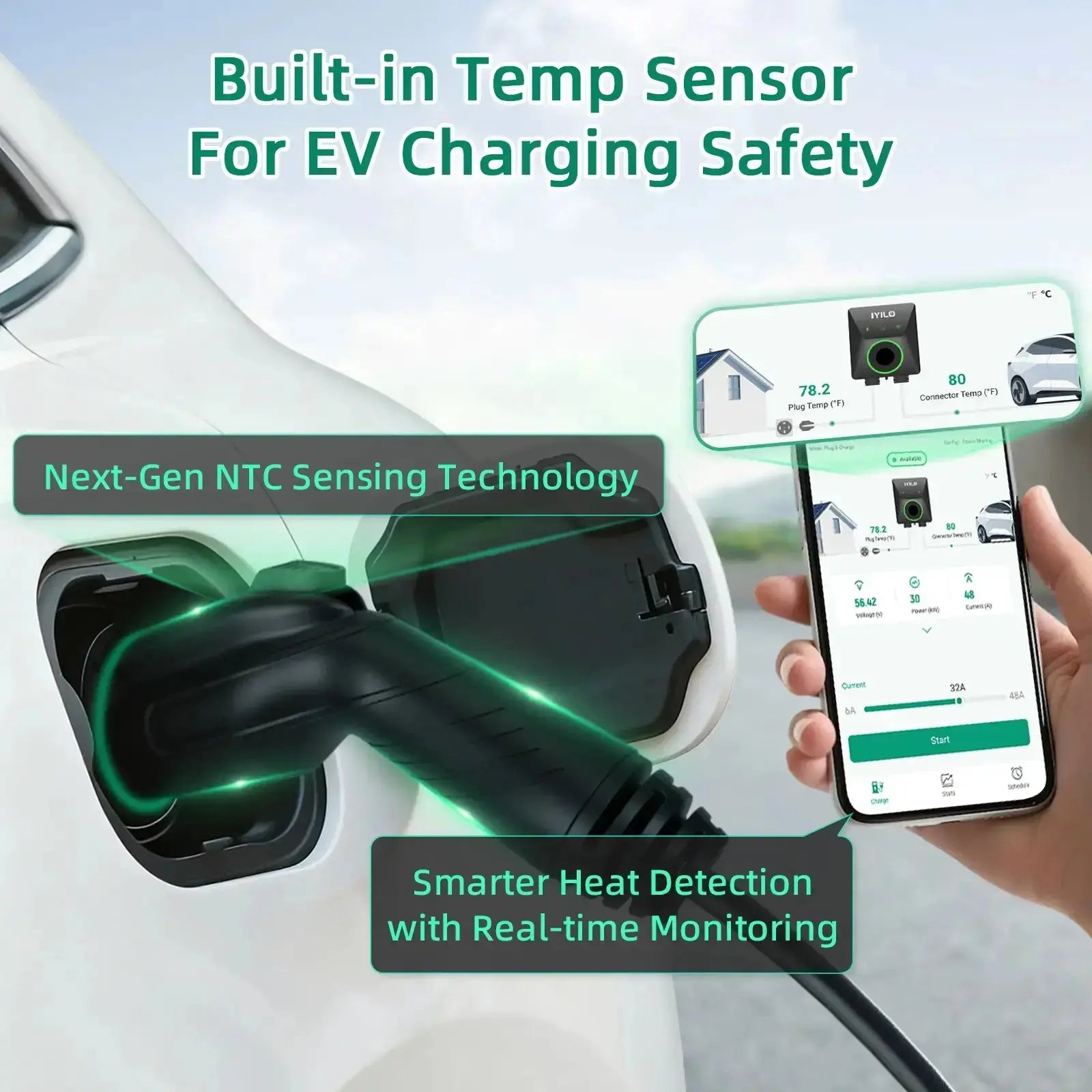

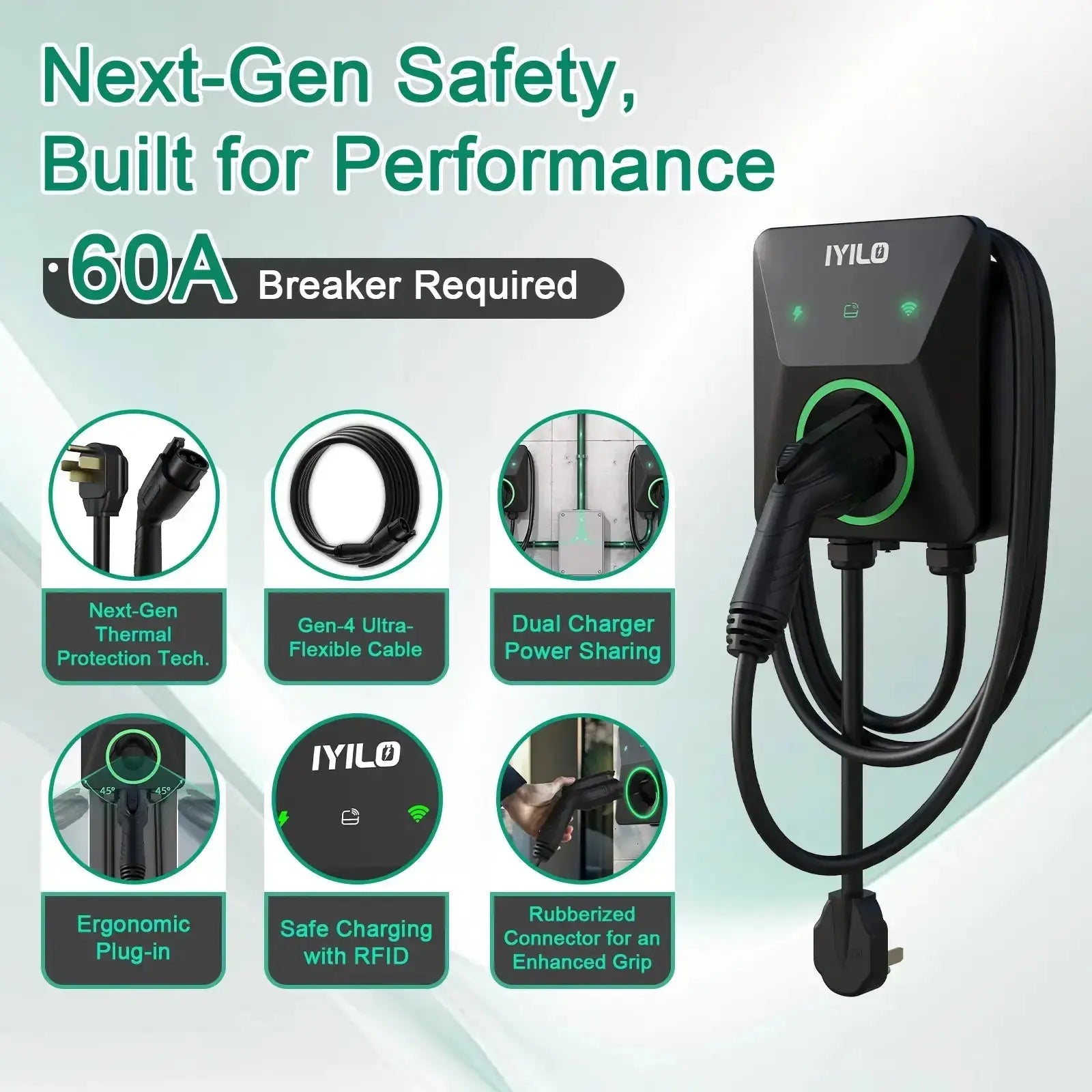

Safety: NTC temperature sensors in both the wall plug and the vehicle connector monitor heat in real time and automatically reduce current or stop charging if overheating is detected. Over/under-voltage, overcurrent, ground fault, and surge protection.

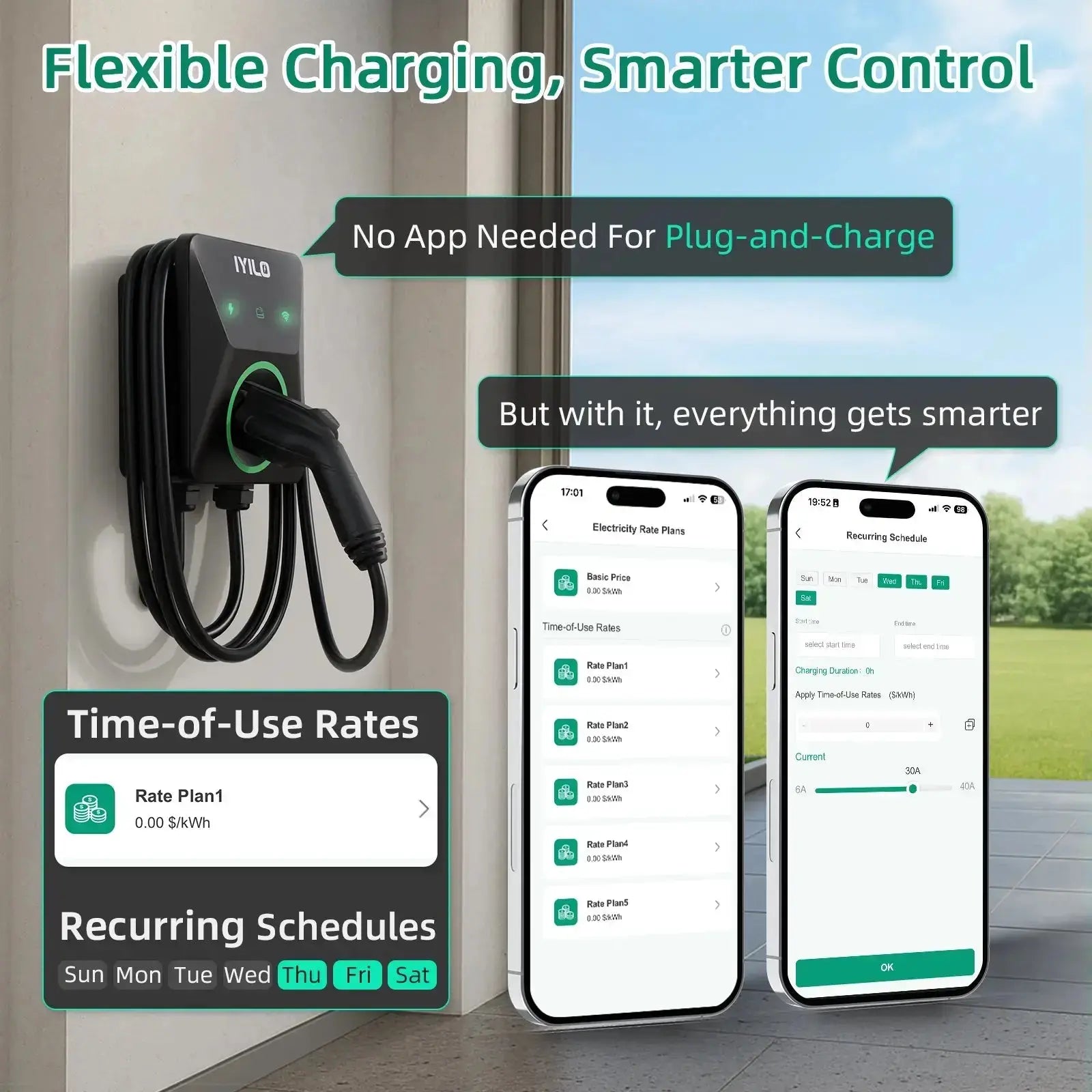

Smart features: 2.4 GHz Wi-Fi and Bluetooth with the IYILO app — schedule charging, monitor energy use, and charge during off-peak rates. RFID card and Plug & Charge access. OCPP 1.6J, over-the-air firmware updates.
Built for indoors or out: NEMA 4 weatherproof enclosure. Operating temperature -22°F to 122°F.
Certifications: ETL certified (tested to UL 2594 and UL 2231 standards), FCC, Energy Star.
Compatibility
Works with every J1772-equipped EV and plug-in hybrid in North America. Tesla vehicles need a J1772-to-NACS adapter (not included).
Installation
Plug-in use needs a NEMA 14-50 outlet on a 50A circuit (40A output). Full 48A output requires hardwiring on a 60A circuit by a licensed electrician.
Warranty & returns
3-year manufacturer support and 30-day hassle-free returns included. At checkout you can extend coverage to 3.5 years (+$69) or 4 years (+$89) — that is what the options on this listing select.
