AC Pro 80A 19.2kW Residential EV Charger

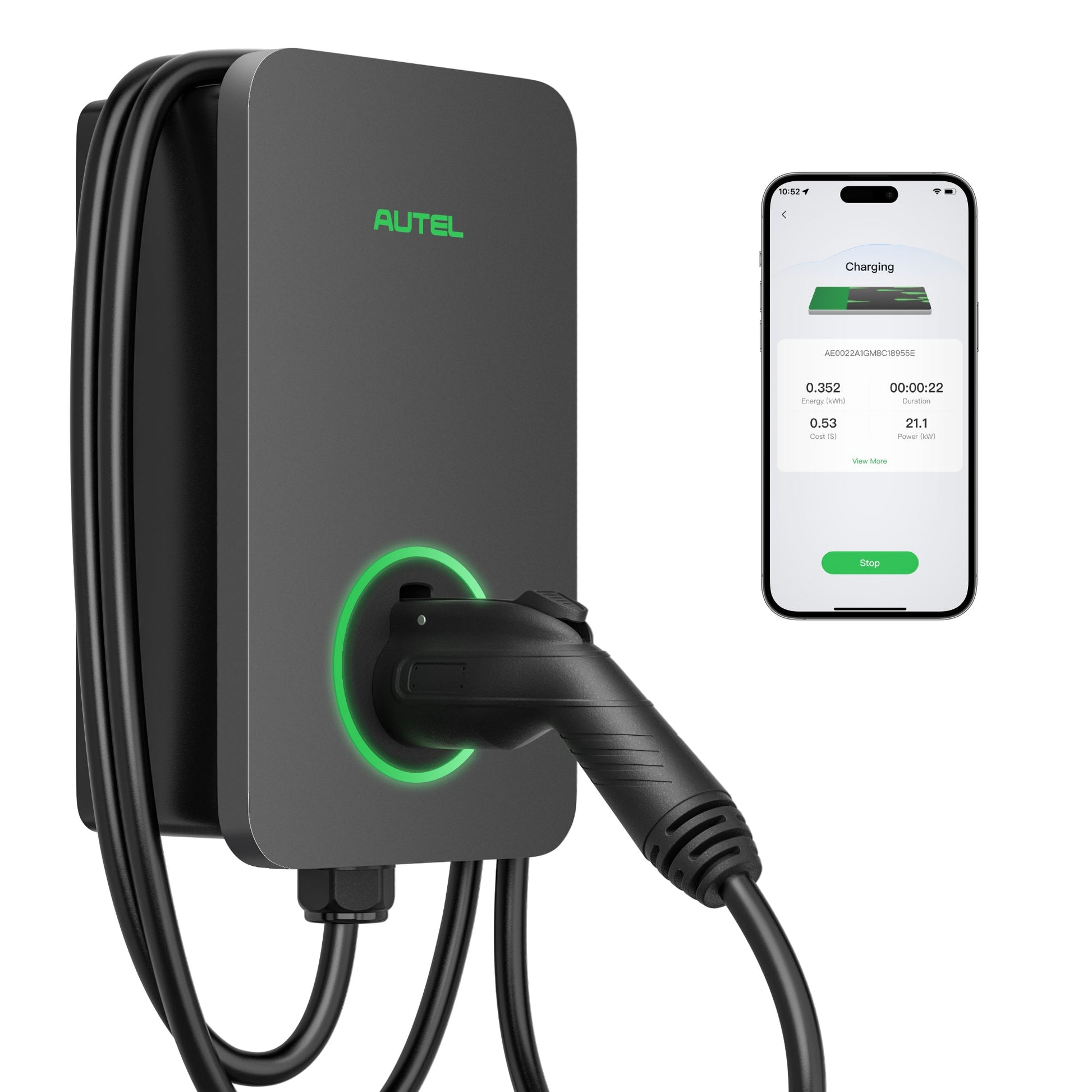

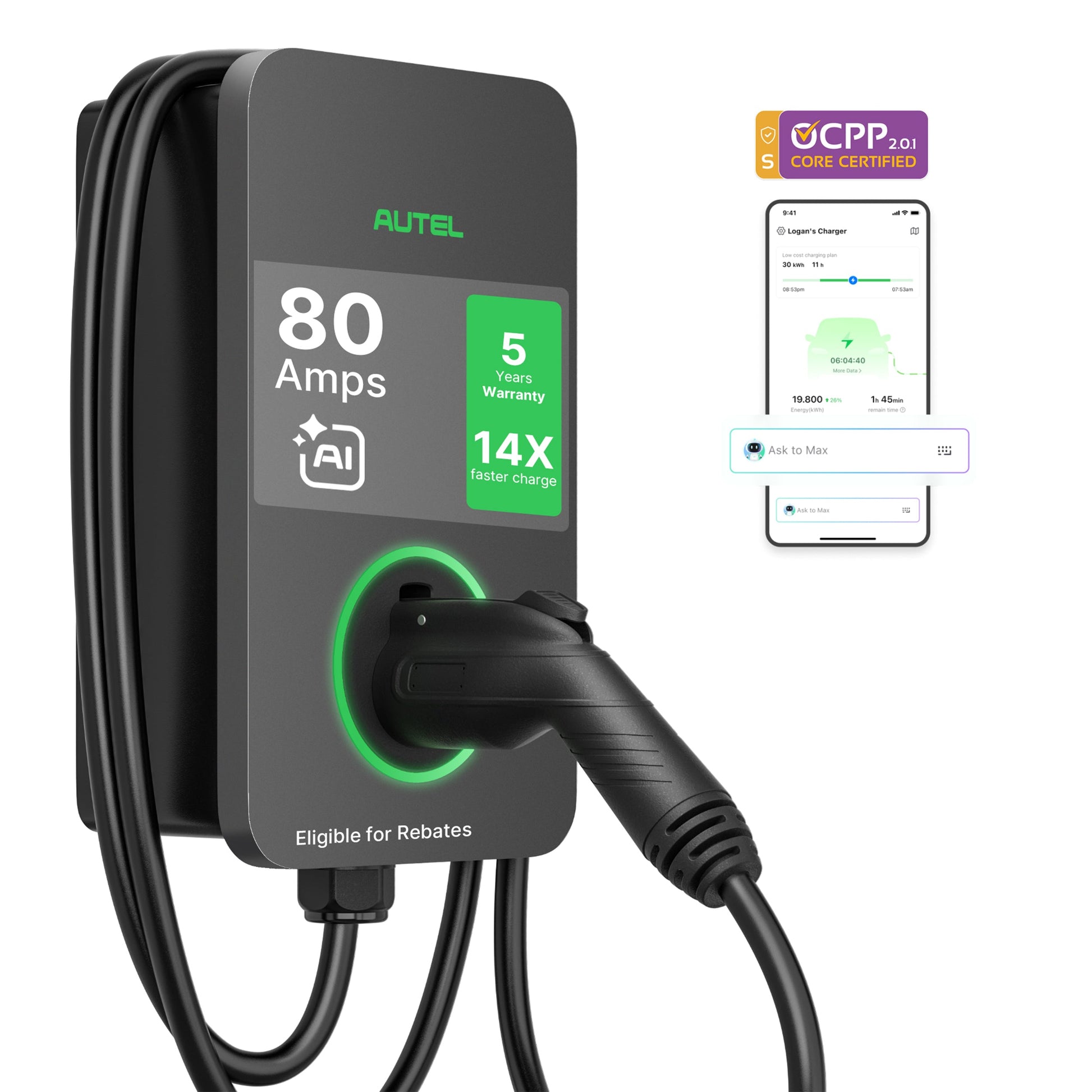

The Autel MaxiCharger AC Pro (80A) is a high-power Level 2 home charger delivering up to 80A / 19.2 kW on 240V power — Autel's flagship residential charger, built for larger-battery EVs and households that want the fastest possible overnight charging.

Key specs

• Power: Up to 80A / 19.2 kW, 208/240V AC single phase, hardwired. Output adjustable from 6A to 80A via the app.
• Connection: 25 ft charging cable with SAE J1772 connector.
• Display: 7-inch LCD touchscreen plus LED status indicators.
• Smart features: Autel Charge app and Autel Charge Cloud — schedule charging around time-of-use rates, start/stop sessions remotely, view real-time energy data, and manage pricing and access. 4G, Wi-Fi, Ethernet, RS485, and Wi-SUN connectivity. OCPP 1.6J and 2.0.1. Over-the-air software updates.
• Metering & access: ±1% metering accuracy (NTEP/CTEP certified). Plug & Charge, AutoCharge, and RFID authentication. ISO 15118 vehicle communication.

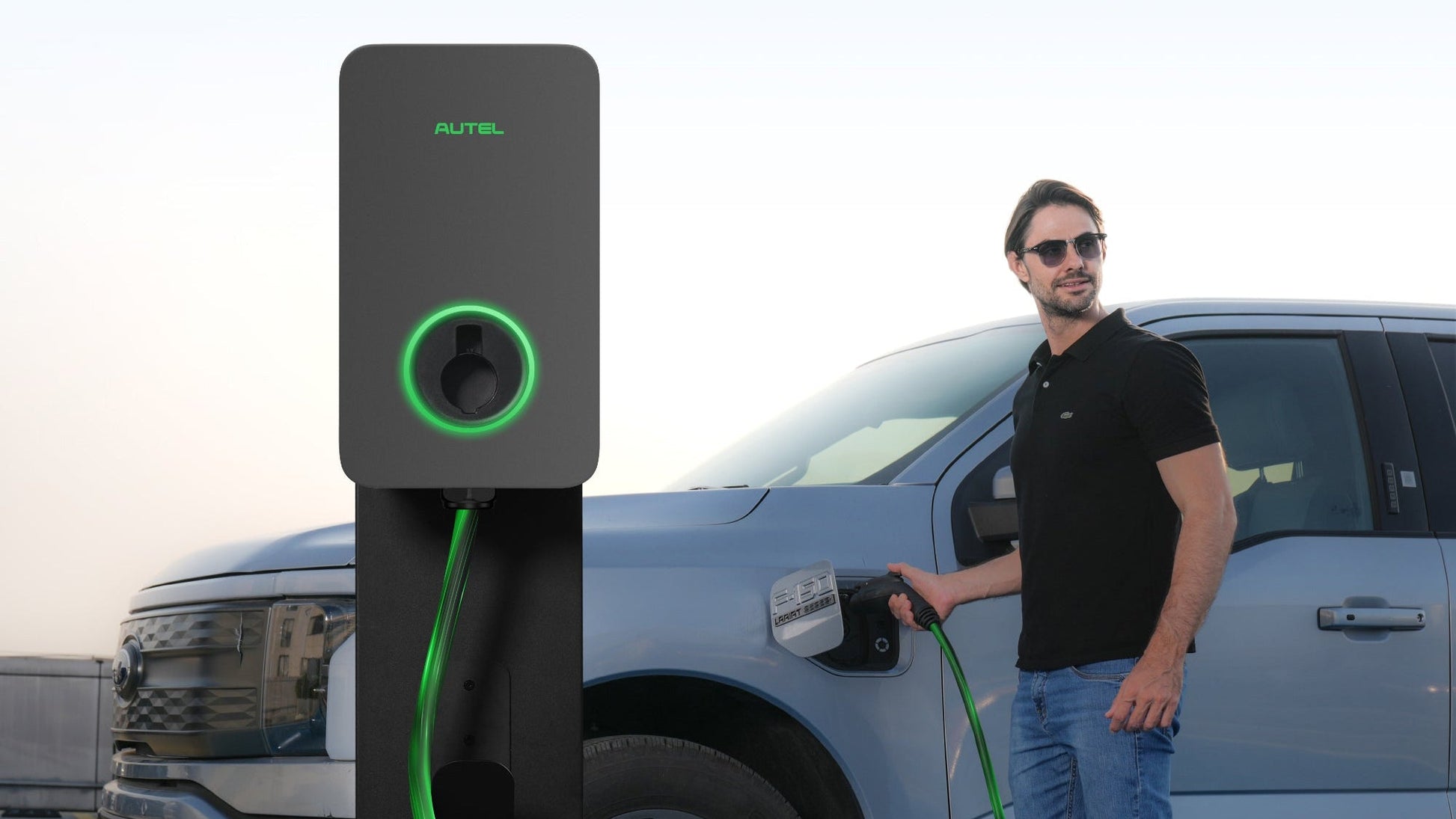

• Built for indoors or out: NEMA 3S enclosure, IK10 impact resistance. Wall or pedestal mount (ADA). Operating temperature -31°F to 131°F. 14.5 × 8.5 × 5.1 in, 20.7 lbs.
• Certifications: UL 2594, UL 2231-1/2, UL 1998, CSA C22.2 No. 280. FCC Part 15 Class B, Energy Star, OpenADR 2.0b, NEC Article 625.

Compatibility

Works with every J1772-equipped EV and plug-in hybrid in North America. Tesla vehicles need a J1772-to-NACS adapter (not included).

Installation

Hardwired on a 100A circuit for full 80A output. Professional installation by a licensed electrician is recommended.

Warranty

5-year Autel warranty. 10-year design lifespan.
