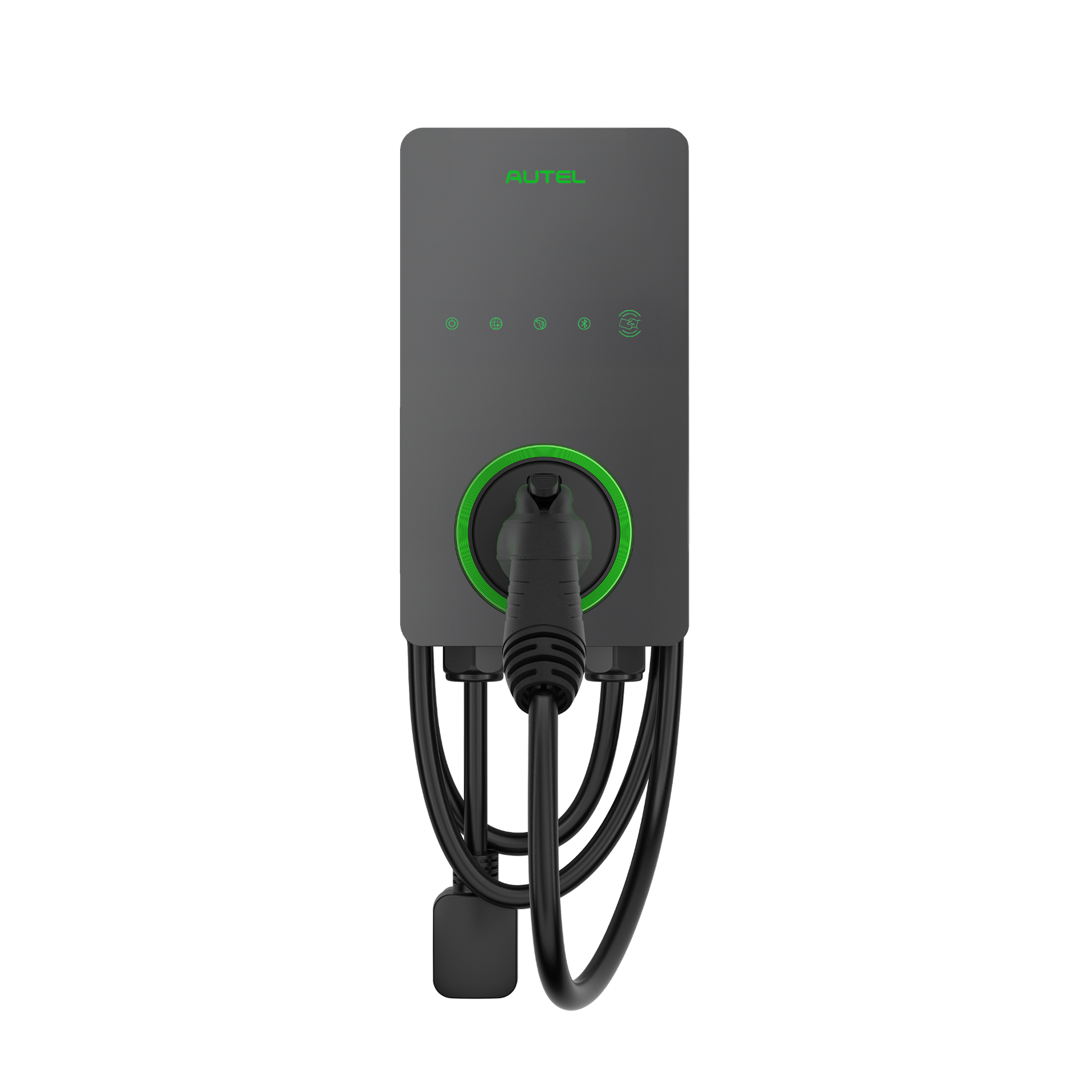

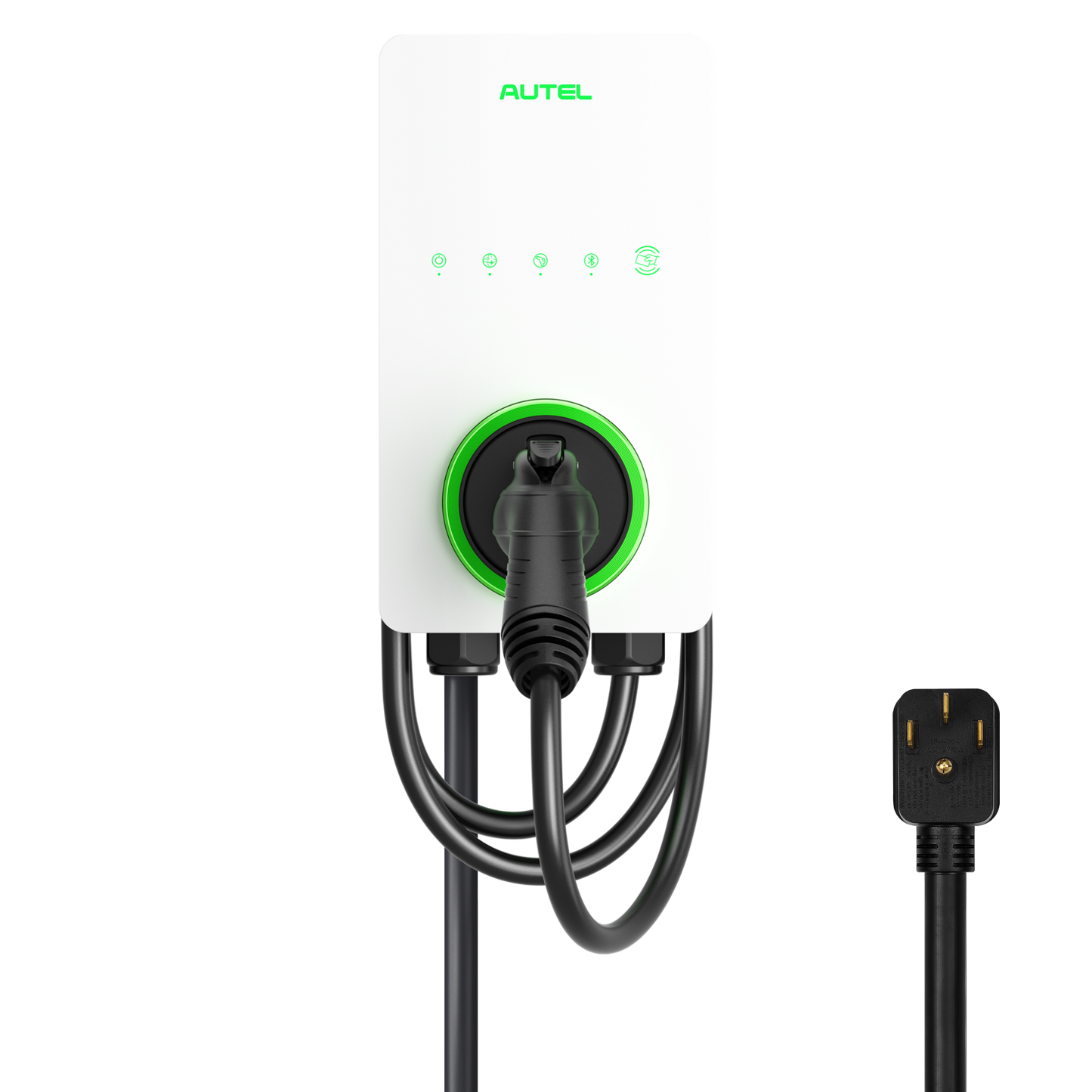

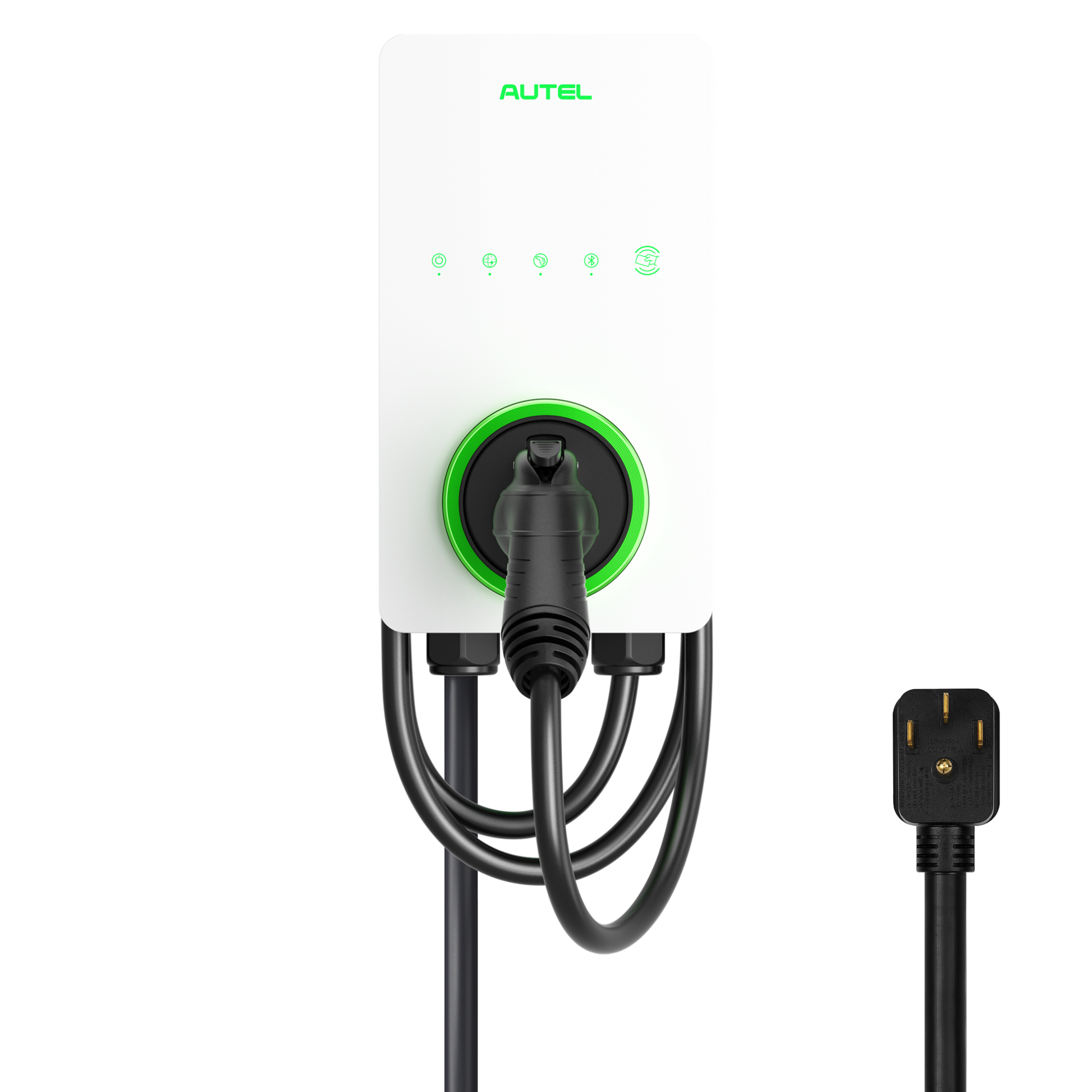

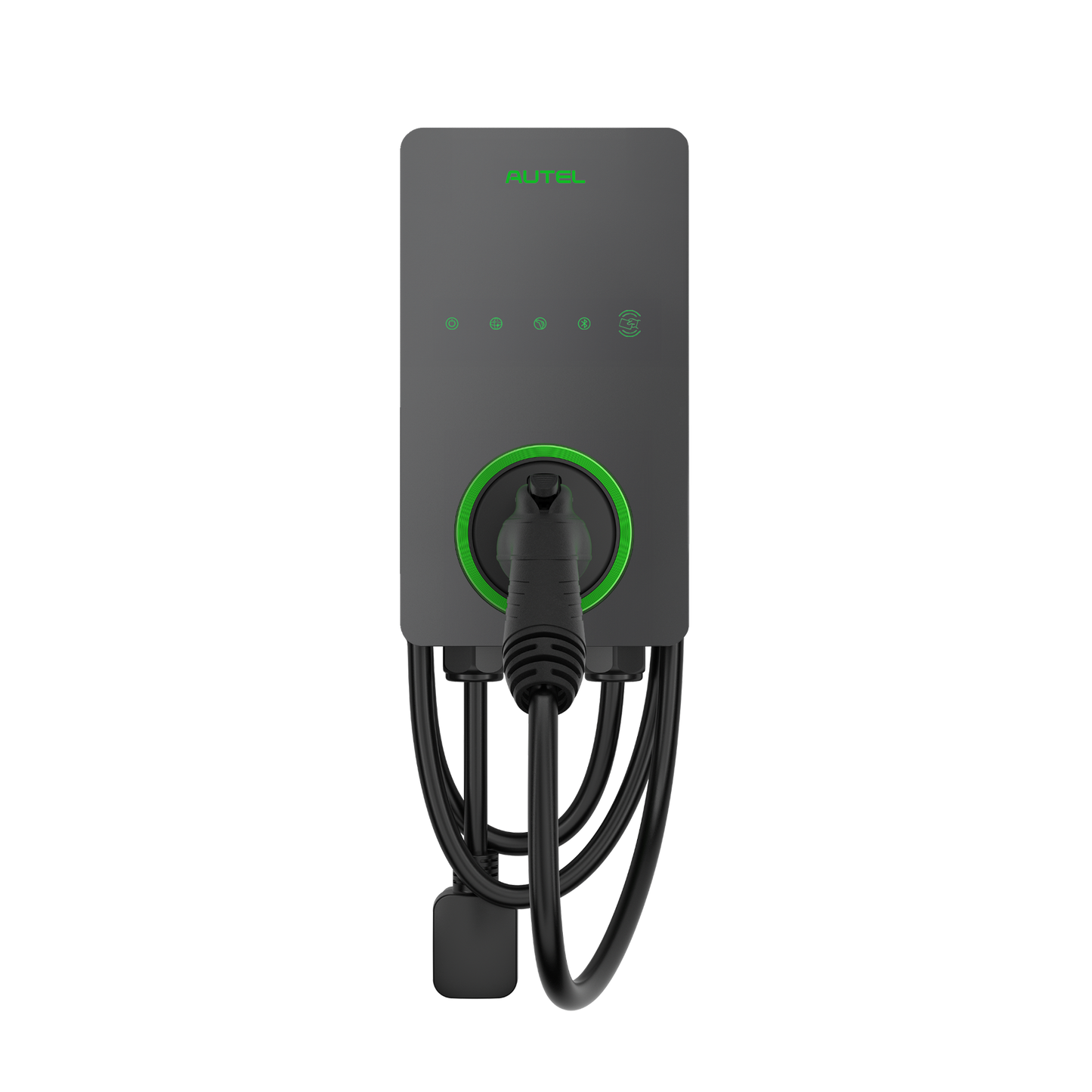

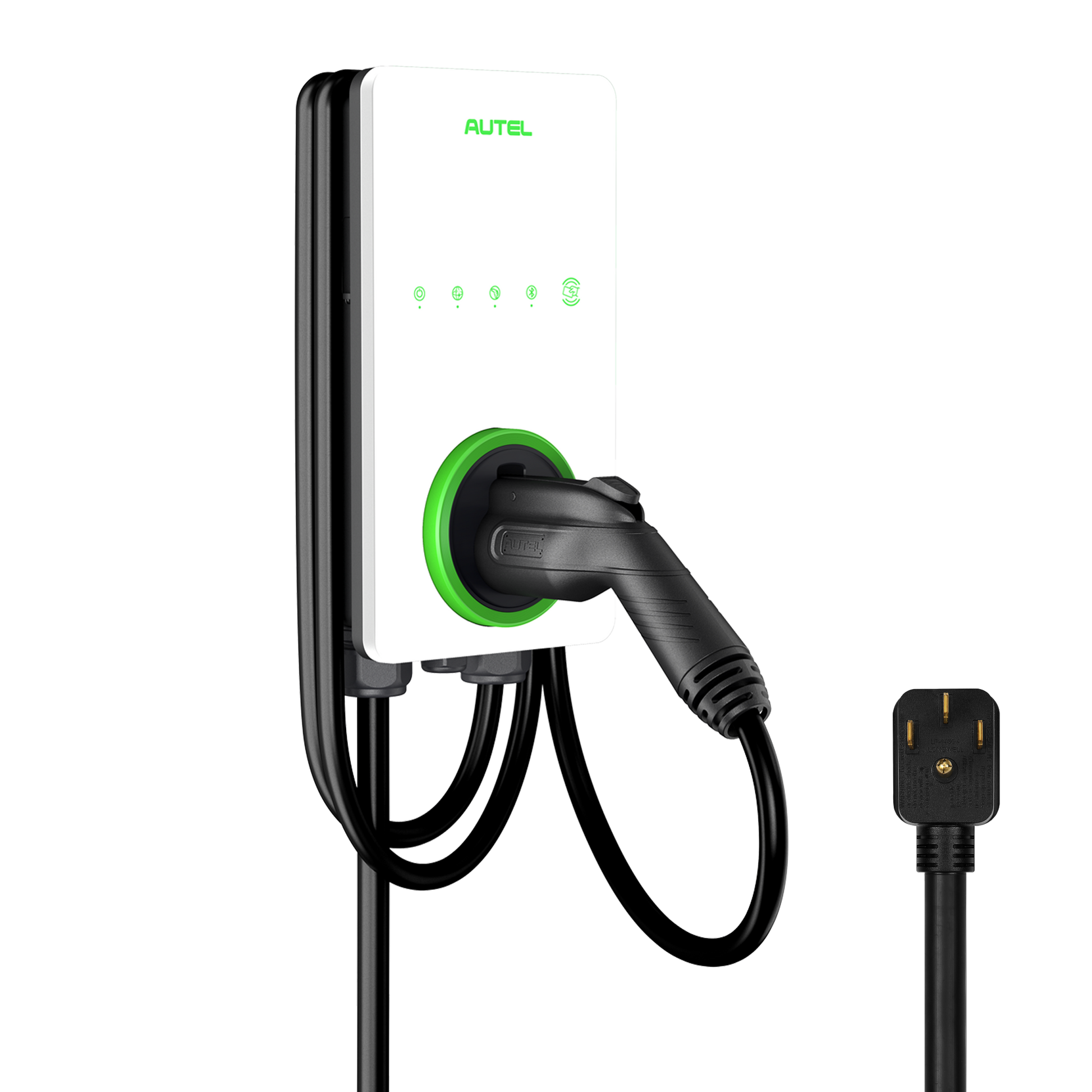

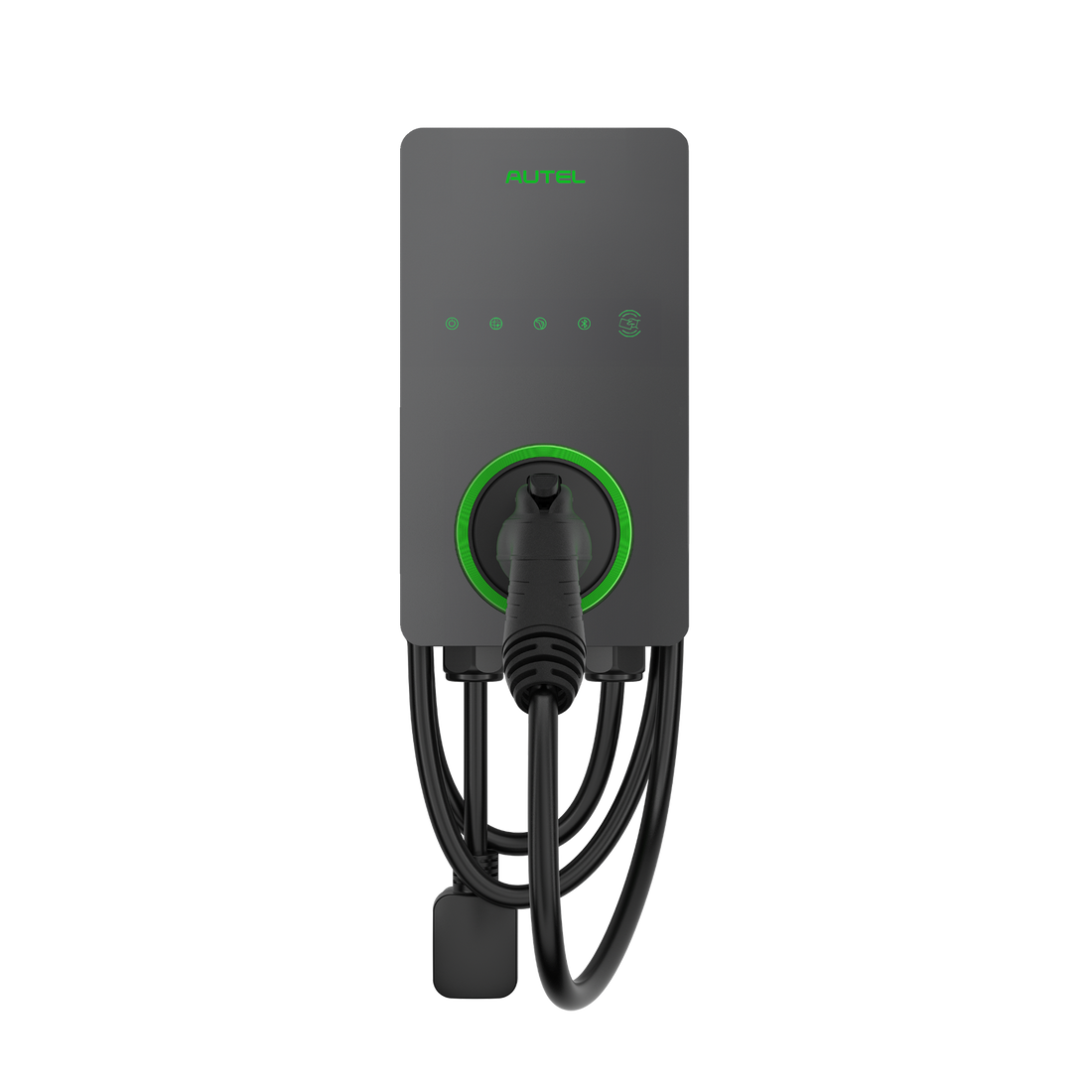

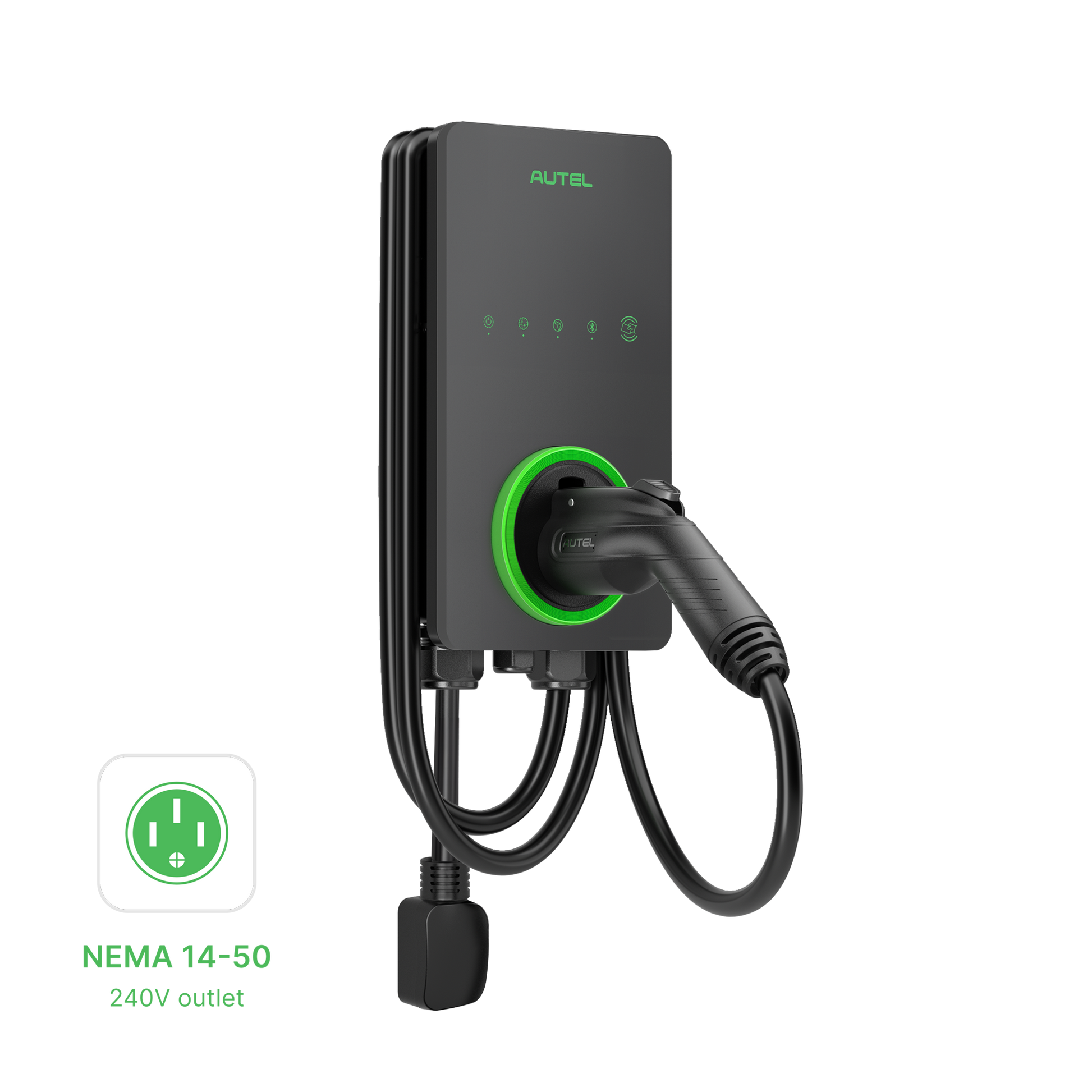

The Autel MaxiCharger AC Lite Home (40A) is a Level 2 smart home charger delivering up to 40A / 10 kW on 240V power, with app control, a 25 ft cable, and a weatherproof enclosure rated for indoor or outdoor install. Named a MotorTrend Best Tech 2025 award winner.
Key specs
Power: Up to 40A / 10 kW, 240V AC. Amperage adjustable (16A / 24A / 32A / 40A) to fit your circuit.
Connection: 25 ft (7.5 m) charging cable with SAE J1772 connector.
Smart features: Autel Charge app — schedule charging, set start/stop times to use off-peak rates, view charging stats, and receive over-the-air firmware updates. Bluetooth, Wi-Fi, and Ethernet. RFID card access to prevent unauthorized use.
Built for indoors or out: NEMA 4X / IP65-rated enclosure, dust-tight and water-tight. Operating temperature -40°F to 131°F.
Dimensions: 13.2 in × 7.4 in × 3.3 in (336 × 187 × 85 mm).
Certifications: CSA certified, Energy Star.
Compatibility
Works with every J1772-equipped EV and plug-in hybrid in North America. Tesla vehicles need a J1772-to-NACS adapter (not included).
Installation
Full 40A output needs a 50A circuit. Have a licensed electrician confirm your circuit, breaker, and install type.
